Using the world's most advanced Internet of Things technology, it has the advantages of deep network coverage, wide link, low power consumption and low cost.
1.wireless communication:
4G for high-speed data or NB-IoT for wide coverage, compatible worldwide.2.Ultra-Long Lifespan:
≥6 years with lithium battery and optimized power efficiency.3.Real-Time Monitoring:
Track flow, pressure, temperature, with instant leak/abnormality alerts.4.Extreme Resilience:
Operates in -30℃~70℃ with IP68 rating for harsh conditions.5.Secure & Reliable:
AES-256 encryption, 7-day offline data storage, auto-sync recovery.1.Residential & Apartments
2.Hotels & Retail Stores
3.Schools & Public Facilities
4.Old Community Renovation
|
project |
parameter |
|||
|
bore (DN) |
15mm |
20mm |
25mm |
|
|
Overload flow (Q4) |
3.125 m³/h |
5 m³/h |
7.875 m³/h |
|
|
Common flow (Q3) |
2.5 m³/h |
4 m³/h |
6.3 m³/h |
|
|
Boundary flow (Q2) |
0.05 m³/h |
0.08 m³/h |
0.126 m³/h |
|
|
Minimum flow (Q1) |
0.0313 m³/h |
0.05 m³/h |
0.0788 m³/h |
|
|
Measurement range (Q3/Q1) |
100 |
|||
|
measurement unit |
0.1 m³ |
|||
|
least count |
0.001 m³ |
|||
|
full-scale reading |
99999 m³ |
|||
|
working temperature |
Cold water meter: 0.1℃~30℃; hot water meter: 0.1℃~90℃ |
|||
|
Allow water pressure |
0.03 MPa～1MPa |
|||
|
Loss rating |
△p63 |
|||
|
Flow profile sensitivity level |
U10,D5 |
|||
|
Climate and mechanical environment safety level |
B class |
|||
|
Electromagnetic compatibility rating |
E1 |
|||
|
levels of protection |
IP68 |
|||
|
transmission parameter |
protocol |

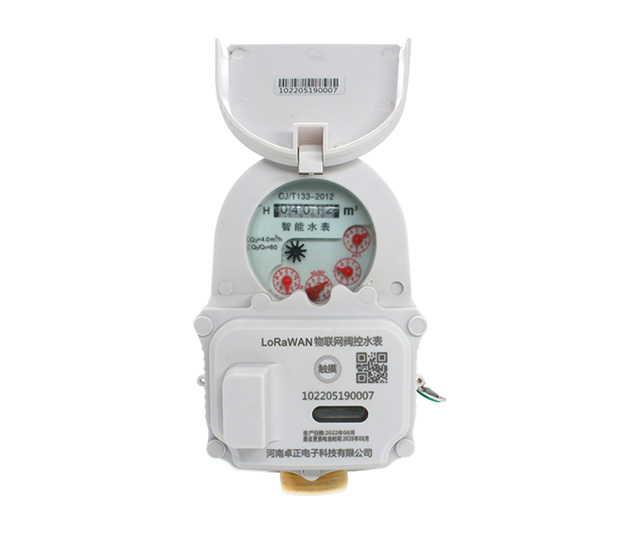

Standard LoRaWAN communication protocol |
||
|
Working frequency band |
B3、B5、B8、B20 |
|||
|
transmitting power |
23dBm |
|||
|
receiving sensitivity |
-131±1dBm |
|||
|
quiescent current |
＜11μA |
|||
|
Communication working current |
＜130mA |
|||
