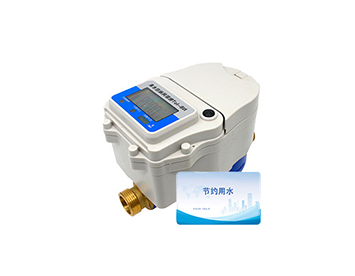

Prepaid Water Management Made Simple.Prepaid IC card system cuts manual reading costs by 80% and reduces unpaid bills by 30%, ensuring fair water allocation and revenue protection.
1.Prepaid management:
Users pay in advance, minimizing billing disputes and improving revenue collection.2.Offline operation:
Works without internet via IC card data transfer, ideal for remote areas.3.Tamper-proof:
Sealed structure with anti-magnetic triggers, auto-shuts valve upon tampering.4.Long-lasting:
≥8-year battery life with automatic shutoff when balance is zero.5.Easy retrofit:
Fits standard mechanical meter footprints for low-cost upgrades.1.Rural water supply systems
2.Multi-unit residential billing
3.Construction site water management
4.Campus water access control
|
Calibre(DN)mm |
15 |
20 |
25 |
||
|
Overload flow(Q4) |
3.125m³/h |
5.0m³/h |
7.875m³/h |
||
|
Common flow rate(Q3) |
2.5m³/h |
4.0m³/h |
6.3m³/h |
||
|
Boundary flow(Q2) |
0.05m³/h |
0.08m³/h |
0.126m³/h |
||
|
Minimum flow rate(Q1) |
0.0313m³/h |
0.05m³/h |
0.0788m³/h |
||
|
Measurement range (Q3/Q1) |
100 |
||||
|
Maximum Allowable Tolerance |
Q1≤Q |
||||
|
Reading range |
0.000005或0.00001~9999.999 |
0.0001~99999.9999 |
|||
|
Operating Temperature |
Cold water meter:T30/T50;Hot water meter:T90 |
||||
|
Allowable water pressure |
0.03 MPa~1MPa |
||||
|
Static working current |
≤5μA(With clock chip) |
||||
|
Pressure loss grade |
△p63(≤0.063MPa) |
||||
|
Flow field sensitivity class |
U10/D5 |
||||
|
Environmental grade |
B级 |
||||
|
Electromagnetic environment grade |
E1 |
||||
|
Supply Options |
Power supply method |
Dry Battery/Lithium Battery |
|||
|
Pricing method |
Single water price/step water price |
||||
|
nstallation |
Horizontal/Vertical |
||||
